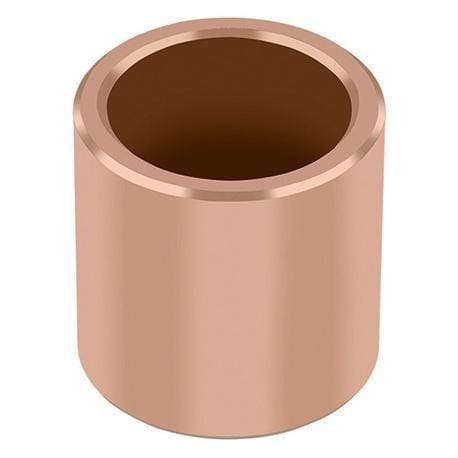

0.375"X0.50"X0.75" 3/8" X 1/2" X 3/4", Part# EP060812, Sintered Bronze Bushing (0424)

$ 1.40


EP060812 SINTERED BRONZE BUSHING 3/8X1/2X3/4

Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.

Nominal Size I.D.

3/8 in

Nominal Size O.D.

1/2 in

I.D. Min

0.3760 in

I.D. Max

0.3770 in

O.D. Min

0.5020 in

O.D. Max

0.5030 in

Length



3/4 in

Min. Temperature

10 ºF

Max. Temperature

220 ºF

P Value (Max.)

2000

V Value (Max.)

1200

PV Value (Max.)

50000

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Bob Jensen
Custom lengths?

The parts fit great, curious if i can order same id and od but custom length if i order in quantity

Hi Mr. Jensen,

There are a lot of variables available. Please email sales@intechbearing.com with your specific requirements.

Thanks,
Steve
